A mind that
kept making.
Leonardo da Vinci (1452–1519), painter of the Mona Lisa, also designed buildings, machines, and weapons.
His notebooks bring sketches, observations, and inventions together. An idea could remain on paper and still offer something for someone else to explore.
An invitation to experiment
Sketch it.
Make it small.
See what happens.
A model brings an idea within reach. If you have ever balanced blocks or built something from sticks, you know something of that pleasure.
Some ideas become objects. Some remain on paper.
This bridge was one of the ideas waiting there.
01 / The Drawing
It began on a page.
A long arch. Spreading ends. Room for a vessel beneath. Around 1502–1503, Leonardo imagined a crossing for the Golden Horn. A few marks suggest a much larger world.
Bridge studies turned upright · 180° display rotation
Leonardo da Vinci · Manuscript L, fol. 66r
Bibliothèque de l’Institut de France
Look a little closer
A whole crossing,
in a few lines.
Here, his attention moves between the shape of a bridge and the life passing around it. Look at the arch, then find the little vessel.
Follow his attention.
The page is turned so the bridge studies are upright. Choose a detail to bring it closer.
Where in the world?
Two shores of Istanbul.
The Golden Horn is an inlet beside the Bosphorus. Leonardo’s proposal would connect the historic city with the Galata side of the water.
A geographical guide to the setting. The precise proposed crossing is not plotted.
One idea leads to another
The next page.

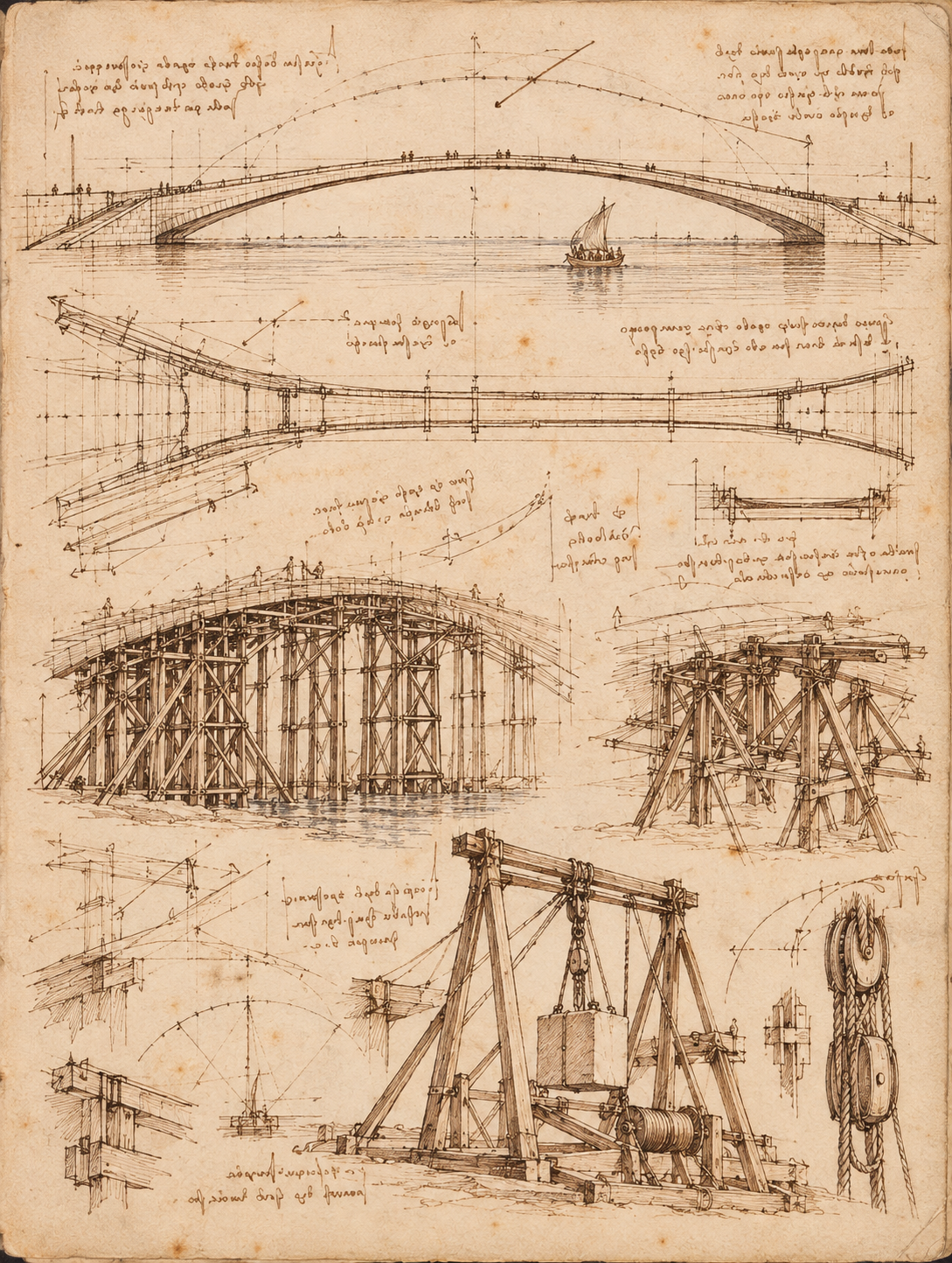

A line is only a beginning. Try another curve. Open the approaches. Work out what holds the stone while the arch takes shape.
Leave both possibilities on the page.
02 / The Vision
Let the line
become a place.
One opening. Two shores. Stone, light, weather, and the bustle of a waterfront. Imagine the city growing around the bridge.
Explore the details
A passage above. A passage below.
The long arch makes room for movement across the water and underneath the crossing. The original drawing gives us this starting point.
An ambitious offer
A bridge for a sultan.
Around 1502–1503, Leonardo offered a bridge design to Sultan Bayezid II, who wanted a crossing between Constantinople and Galata. The idea answered a practical need with an extraordinary shape.
What made it different?
One shallow arch would span the water, with room for a sailing vessel beneath. Its spreading supports offered a wider stance. Had it been built, it would have been one of the longest bridge spans of the pre-industrial world.
How big was the idea?
The MIT team studied a span of about 280 metres—roughly 920 feet. That is their dimensional interpretation, not a settled measurement: Leonardo used braccia, and modern conversions differ. “Span” means the unsupported reach, not the whole walk including approaches.
Why was it never built?
Leonardo’s proposal was not selected. The sources used here do not establish a certain reason. The crossing remained on paper—and the page survived.
03 / Cross the Bridge
The other shore
is right there.
Imagine an errand across the water. A visit. Goods to carry home. What if you could simply walk to that city over there?
Leave the shore behind.
The paving rises. The city slips below the parapet. For a while, the bridge becomes a place of its own.
Imagine the everyday
A crossing becomes
part of a day.
Who might use it?
A walker, a traveler leading a horse, someone carrying goods. A visit across the water. An errand that becomes part of an ordinary day.
How far to the other side?
The notebook describes 600 braccia overall: 400 over water and 200 over land. Modern readings of those dimensions differ, so a precise distance or crossing time would promise more certainty than the record gives us.
04 / Build It
Imagine the work.
Stone on the quay. Timber over the water. A load rising toward the arch. Step onto the building site.
The working drawing
Before stone,
a line.

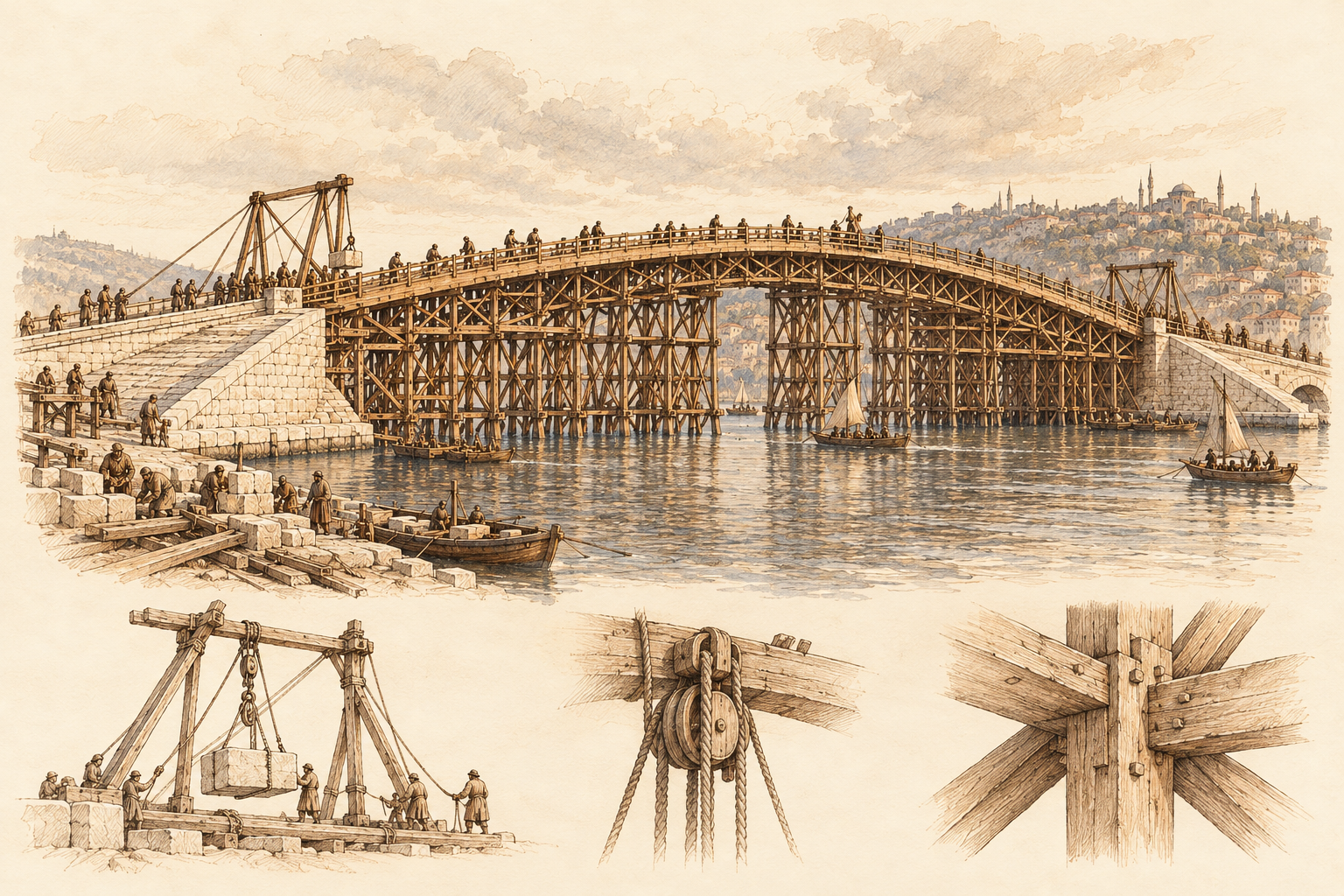

A curve becomes a framework. Smaller studies turn attention to the connections and the work of lifting.
Bridge elevation and construction details
See the construction ideaFour simple stages
Support the curve. Bring the stone together. Close the arch. Remove the temporary works. Follow the changing relationship between the stone and its support.
Hold the shape.
Temporary timber centering supports the intended curve. The stone arch has yet to take shape.
Timber carries the work until the stone arch can carry itself.
Now leave the work behind.
Take the passage beneath it.
05 / Sail Beneath It
Now look up.
Above you, a road. Ahead, open water. That small vessel in the notebook becomes a way to experience the bridge from below.
He left room
for another journey.
The original side view includes a sailing vessel beneath the arch. The bridge was imagined as a passage over the water that would also allow passage below.
Find the vessel in Leonardo’s drawing
Leonardo da Vinci · Bibliothèque de l’Institut de France
06 / Test the Idea
The idea found
new hands.
In 2019, Karly Bast and Michelle Xie, working with John Ochsendorf at MIT, revisited the proposal. They made a physical model from 126 printed blocks.
A question with a physical answer
Take away the support.
Does it stand?
The researchers assembled the blocks on temporary support. When it came away, the model stood. Their experiment tested how the geometry could carry its own weight.
A model brings a question into the hands.
Look around the model
The same idea,
from different sides.
These are the research team’s drawings. Compare the side view with the spreading supports you can see from above.
What did the experiment tell us?
The team combined structural analysis with a physical model, including tests of moving supports. Their work supports the structural feasibility of the design they tested.
Read the research story at MIT ↗From a notebook to another pair of hands
Never built.
Still exists.
A bridge can remain unbuilt and still give someone
an idea to draw, a model to make, a question to try.
What would you try making?
